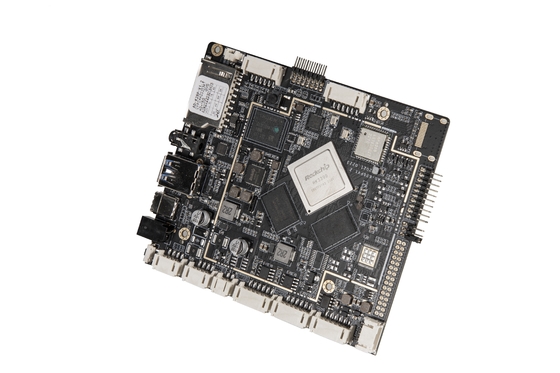

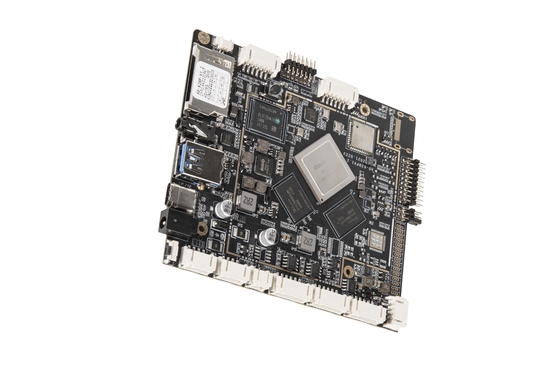

RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity

RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity
RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity
RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity

Grote Afbeelding :  RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity

Productdetails:
Plaats van herkomst: KN-nummer
Merknaam: ADW SUNCHIP
Modelnummer: AD-K28RK3399
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1pc
Prijs: Onderhandelbaar
Verpakking Details: 1pc/bubble bag, juiste hoeveelheid in een karton
Levertijd: 1~3 dagen indien voorraad, 15-25 dagen indien geen voorraad
Betalingscondities: T/T, Western Union, L/C, MoneyGram
Levering vermogen: 1,00,000pcs per maand
Contact

RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity

beschrijving
CPU: RK3399 Cortex A72 + quad core cortex A53 GPU's: Mali-T860
Ram: 4 GB eMMC: 16GB/32GB/64GB facultatief
MIPI-interface: maximumresolutie 1920*1080 Touchscreen: I2C interface, USB-aanraking
RJ45: ondersteuning voor 10/100 /1000 Ethernet WIFI/BT: ondersteuning
Beeldomwenteling: Steun 0 graad, 90 graad, 180 graad, 270 graad hand/autoomwenteling, (de facultatieve) functie van de Interface voor het weergeven: LVDS/MIPI/EDP
garantie: 1 jaar
Markeren:

RK3399 Android Embedded Board

,

Capacitive Touch Android Embedded Board

,

RJ45 Interface Android Embedded Board

RK3399  Rockchip Android Board​

Product Specifications

  • Hardware specifications
CPU Rockchip RK3399 dual-core Cortex-A72+ quad-core Cortex-A53 CPU
GPU ARM Mali-T860MP4 GPU
Run and save LPDDR4 4G
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (label 16GB)
Display interface LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
  EDP screen interface, maximum resolution 4K
  MIPI screen interface, maximum resolution 1920*1080
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (multi-point capacitive touch)

Support USB multi-point capacitive touch, multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch
Network With RJ45 interface, support 10/100 Ethernet
  Equipped with Wifi&BT module, supporting Wi-Fi 802.11a/b/g/n/ ac protocol. Support BT4.0
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, gravity sensor function (optional)
Real Time Clock External real-time clock power supply battery
Interface device Support MIPI interface camera
  6 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)
  2 groups of UART, 1 group of SPI or 1 group of UART, 2 groups of SPI. Support external serial devices (NFC module, printer, card reader, etc.)
  SD card, maximum support 64GB
  Class D power amplifier: 3W*2 8 ohms, support microphone
  HDMI 2.0 output
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation/image enlargement function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A

Characteristic:

  • Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
  • Support EDP interface display screen.
  • Support MIPI interface display screen.
  • Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  • Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
  • Multi-channel USB interface, serial port, IO port output.
  • Support 4K video playback and HDMI 2.0 high-definition output.
  • Strong anti-electromagnetic interference and electromagnetic compatibility.



RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity 0RK3399 Android Embedded Board with Multi-Point Capacitive Touch and RJ45 Interface for Network Connectivity 1
