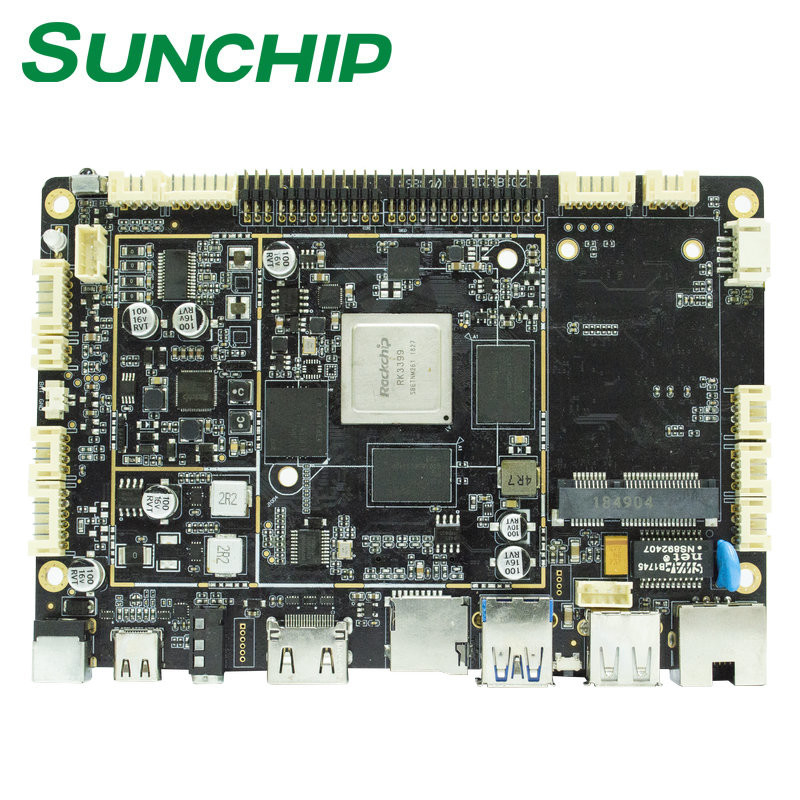

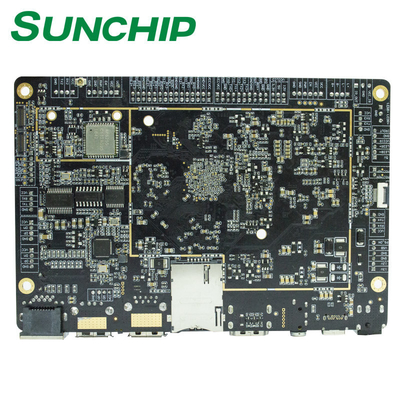

High Performance ARM Embedded Rk3399 Mainboard Android System 10.0

High Performance ARM Embedded Rk3399 Mainboard Android System 10.0
High Performance ARM Embedded Rk3399 Mainboard Android System 10.0
High Performance ARM Embedded Rk3399 Mainboard Android System 10.0 High Performance ARM Embedded Rk3399 Mainboard Android System 10.0 High Performance ARM Embedded Rk3399 Mainboard Android System 10.0

Grote Afbeelding :  High Performance ARM Embedded Rk3399 Mainboard Android System 10.0

Productdetails:
Place of Origin: China
Merknaam: ADW
Certificering: ISO9001, ISO4001, ISO27001
Model Number: B03
Betalen & Verzenden Algemene voorwaarden:
Minimum Order Quantity: 1 set
Prijs: $70-$100
Packaging Details: packing box + outer carton
Delivery Time: Samples: 1-3 days; MP: 15-20 days;
Payment Terms: T/T, Western Union, PayPal, L/C
Supply Ability: 10,000pcs per month

High Performance ARM Embedded Rk3399 Mainboard Android System 10.0

beschrijving
CPU: RK3399, dual core Cortex-A72+ quad core Cortex-A53 GPU: Mali-T860MP4
RAM: LPDDR4 2G/4G Built-in storage capacity: EMMC /16G/32G/64G optional (Default 32GB)
Display interface: LVDS, EDP, 1080P Screen voltage: Support 3.3V/5V/12V optional
Network: With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 5.0 HD: 4K / 1080p
Model: 2k/4k Rom: 16GB/32GB/64GB
Application: Digital Signage Mainboard Backlight: 10/100/1000M Lan
Chipset Manufacturer: Rockchip Internet: USB , RJ45, HD MI , LAN, Audio
Power: Android 10 Usb Ports: 1 USB 3.0 ports, 3 USB 2.0 ports
Warranty: 1 year

High Performance ARM Embedded Rk3399 Main Board Android System Iot Board Support PCBA Hardware Customization

Overview for Embedded System Board:

Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.

Characteristic for Embedded System Board:

  • It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
  • Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
  • A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
  • Multi-channel USB interface, serial output.
  • Support 4K video play with HDMI 2.0 HD output.
  • Strong anti-electromagnetic interference and electromagnetic compatibility.

Sunchip is a professional android board designer/manufacturer in Shenzhen, China.

We have a team that includes more than 150 people. In this team, R&D has more than 80 employees that involving hardware engineers (layout, debugging), software engineers (Driver, Kernel, testing, APK), ID designer and Mechanical Engineers.

Basic hardware specifications for Embedded System Board:


CPU Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU
GPU ARM Mali-T860MP4 GPU
Deposit LPDDR4 4G
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (Default 16GB)
Display interface LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display
EDP screen interface, support resolution 1920x1080
Screen voltage Support 3.3V/5V/12V optional
Network With RJ45 interface, support 10/100/1000 Ethernet
Support 4G PCIE interface
With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 5.0
Image rotation Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real Time Clock External real-time clock power supply battery
Interface device Support MIPI camera x2
USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0
3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.)
TF card, maximum support 64GB
Class D amplifier: 5W*2 8 ohms, support microphone
HDMI 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V/3A


Basic software for Embedded System Board:


Operating system Android 7.0
Basic software function Web browsing, email, e-book, resource manager
Sound mode Clock, alarm clock, calculator, recording
Voice support Multinational voice
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
File processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -Chrome Lite
Email
Gmail
System Management APK installer
Original Android system, open root permissions, product customization development
Real-time remote monitoring, 7*24 hours unattended
Support OTA remote upgrade
System setting
Google Maps
Global time


High Performance ARM Embedded Rk3399 Mainboard Android System 10.0 0High Performance ARM Embedded Rk3399 Mainboard Android System 10.0 1High Performance ARM Embedded Rk3399 Mainboard Android System 10.0 2High Performance ARM Embedded Rk3399 Mainboard Android System 10.0 3

WHY CHOOSE SUNCHIP:

Sunchip is a software and hardware solution provider, retailer store digital signage display solution provider, and it’s located in Shenzhen, China.



Sunchip has a huge R&D team which more than 80 employees.

They include hardware layout engineer, hardware debugging engineer, ID design engineer, mechanical design engineer, android kernel software engineer, android driver software engineer, apk development engineer, FAE software test engineer, and so on.

So, if our clients choose Sunchip, don’t need to worry about anything, we can provide one-stop service for them.



BTW, Sunchip has more than 3200 square meters of factory and office, totally we have two floors in this building. Recently we plan to extend our office, because more younger people join us, we need more office. Moreover, more and more orders, seems that we also plan to extend our factory.



We got a lot of certificates, like, CE, ROHS, FCC on many products. Some clients, like from Japan, Korea, Thailand, requested to do TELEC, KC and TISI. We can do all of them.





High Performance ARM Embedded Rk3399 Mainboard Android System 10.0 4High Performance ARM Embedded Rk3399 Mainboard Android System 10.0 5





More recommendations of ARM Motherboard:

High Performance ARM Embedded Rk3399 Mainboard Android System 10.0 6





[you can also tell us your requirements, so that we advise you a matched solution]





FAQ

1) Q: Is SUNCHIP a factory or simply a trading company?

A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.



2) Q: What payment methods are available to me?

A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.



3) Q: How long is the warranty time?

A: 1 Year.



4) Q: What are the shipment terms and delivery times of your company?

A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.



5) Q: Do you give any discounts ?

A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.



6) Q: I would like to add my company logo on your products, is this possible?

A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.

Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!




New Arrival!!!

High Performance ARM Embedded Rk3399 Mainboard Android System 10.0 7
8K RK3588 AIot Edge Computing industrial box with rich interfaces, which suitable for intelligent remote network control: AIoT , industrial, medical, large advertising, educational video terminals and other equipment.

Here is the product image , few box in stock now, welcome to contact me to get more details information.
