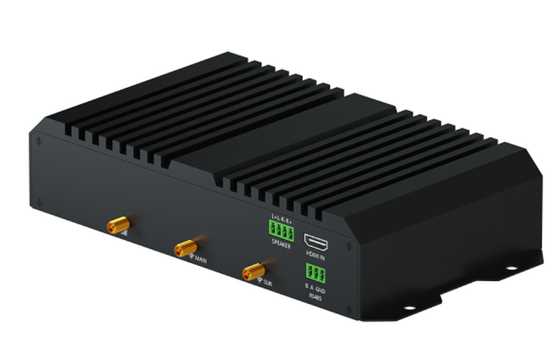

RK3588 8K UHD Octa Core Android Box
Sunchip has more than 10-year experience on PCBA design and mass-production, also passed the ISO9001 certification. Our office &factory have more than 3500 square meters.
Sunchip can provide one-stop service, from PCB layout, prototype, production, PCBA SMT, testing, housing design, assembly, software customization, QC control, after-sale etc.
Product OverView:
-1. Intelligent industrial all-in-one large board, using Rockchip RK3588 octa-core chip solution.
-2. Support Android 12 system. Enhanced power management circuit, support common external devices, rich interface, stable performance.
-3. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.
Main Feature::
1. Octa-Core, 8K output, 4K hardware decoding;
2. Main frequency up to 2.4GhZ;
3. RK3588 performance is higher 3.3 times than RK3399
4. Android 12 OS;
5. Rich interfaces:
6. Network: 2.4G & 5G WIFI; Bluetooth 5.0; 4G LTE Optional; Dual 1000M LAN;
7. Build-in M.2 SSD Extended interface (SSD optional)
|
System
|
CPU
|
RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55
|
|
GPU
|
ARM Mali G610 MP4 GPU
|
|
NPU
|
6Tops, int4/int8/int16/FP16
|
|
MCU
|
for low power control
|
|
RAM
|
8GB/16G (optional)
|
|
Memory
|
32GB/64GB/128GB/256GB (optional)
|
|
Operating System
|
Android 12
|
|
Network
|
WiFi
|
IEEE 802.11 a/b/g/n/ac
|
|
Dual wired network
|
Support 1000M wired network network*2
|
|
Mobile Network
|
Support wireless 4G network
|
|
Bluetooth
|
BT5.0
|
|

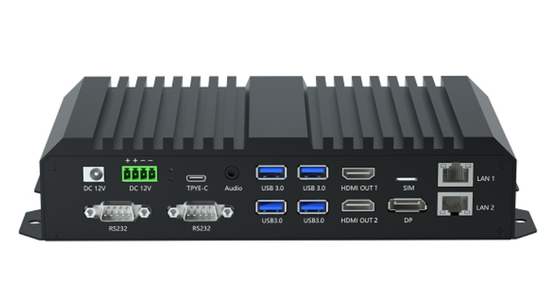

Motherboard Interface
|
TYPE_C
|
Standard Type_C*1
|
|
DC holder*1
|
Front 5.5/2.5mm
|
|
DC terminal input interface*1
|
4PIN pitch 3.81 terminal power input port*1
|
|
Headphones
|
3.5MM support stereo with MIC headphone output port
|
|
USB 3.0
|
USB 3.0_A port*2
|
|
HDMI_OUT A port
|
Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display)
|
|
SIM card
|
SIM card port*1
|
|
Wired network port
|
RJ45 network port*1
|
|
Horn
|
Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81 green terminals * 1
|
|
HDMI_IN
|
Support HDMI 2.0_4K input*1
|
|
Sub-board interface
|
RS232 COM port
|
RS232 output port DB9*2
|
|
USB 3.0
|
USB 3.0_A port*2
|
|
HDMI_OUT A port
|
Support HDMI 4K60HZ output*1
|
|
DP display interface
|
DP display output interface*1 7680x4320@30Hz output*1
|
|
Wired network port
|
RJ45 network port*1
|
|
M.2 internal SSD interface
|
M.2 built-in SSD expansion interface*1
|
|
RS485
|
RS485 3PIN pitch 3.81 green terminal block*1
|
|
Environmental parameters
|
General working temperature/humidity
|
-20℃-60℃, 30%RH-60%RH
|
|
General storage temperature/humidity
|
22±4℃ , 30%RH-60%RH
|
|
Housing
|
Color
|
Black
|
|
Material
|
Profile
|
|
Size
|
Motherboard Size
|
200*125mm
|
|
Sub-board size
|
200*125mm
|
|
Whole machine size
|
244*128*49.5mm
|
|
Other
|
Indicator light
|
Red and blue 2 colors
|
|
Button
|
Upgrade key*1
|
|
|
Power adapter
|
DC:12V/3A
|
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
